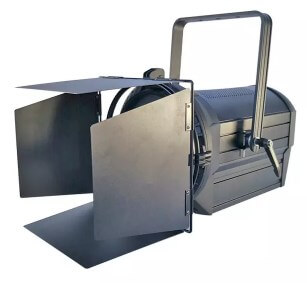

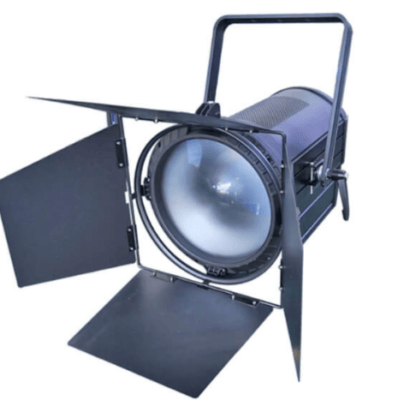

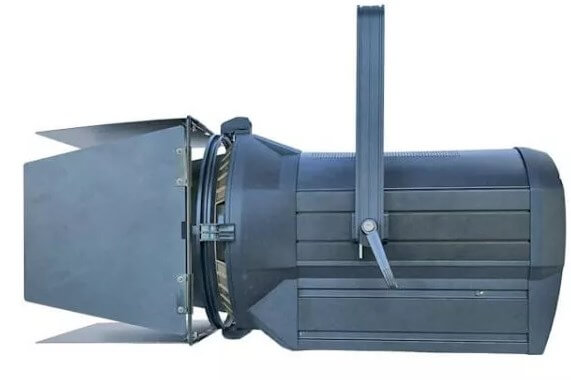

GL-FR600w-bi-DL660s/lx

Description

• Features

• The internal adopts full copper radiator large area, good heat dissipation, ensure the lifespan of the LED Lamps;
• Through efficient optical lenses, with special heat dissipation design, make the light is downy, small stray light, no glare, eyes more comfortable;
• Use the LED video projector scheme, the light energy saving 80%;
• Because of almost no infrared radiation, it has greatly improve work environment.

Technical Specifications

Light Sources

• LED: 1pc 600W bicolor COB LED Lamps
• Lifespan: 500,000h
• Color: CW+WW

Optics

• Beam angle: 15-60degree
• Dimmer: 0-100% linear dimmer

Light Output

• Optimal projection distance: 5-60m

Control

• Control mode: DMX-512; Auto run
• DMX channel: 4CH, 5CH, 6CH, 15CH
• Display of control panel: digital tube

Power Supply

• Related voltage: AC100V-240V, 50/60Hz
• Related power: 300W(every color 3200K and 5600K)

Construction

• Body dimension: D584*W352*H293mm
• Net weight: 12kg
• Shell color: black
• Shell material: aluminium die casting

Working Environment

• Working temperature: -25-40℃
• Cooling: Radiator and Fan, within 45db
• Protection rating: IP20

Standard Configuration Spare Part List

• Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)
• User manual: English version user manual

• Package

• Carton board package size: 720*390*420mm(1pc/carton)
• N.W/G.W: 12kg/14kg
