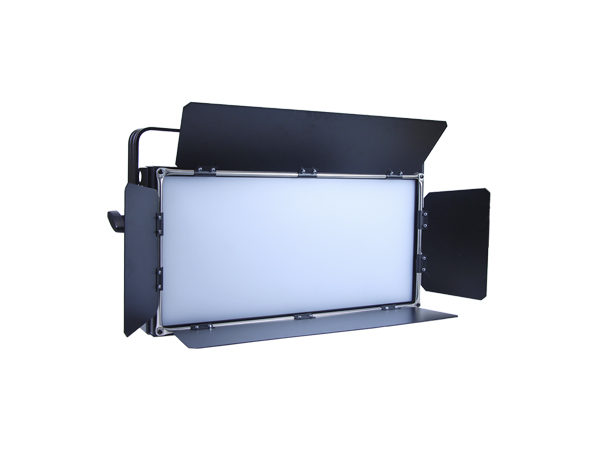

GL-PLsft200w-rgbw-490s/ln

Description

• Based on the LED Film and Television Flat Light, using high brightness SMD LED chips beads matrix arrangement of large area, through the whole aluminum shell to realize heat dissipation naturally. This light has high brightness, good head dissipation, ultra-quiet and other features. It can satisfy the requirement of indoor and outdoor movie filming for the lighting layout. It is a good substitute of the traditional three basic colors light.

Features

• The light’s lighting function is controlled by DMX-512, very convenient;
• Using bead LED chips, pure color temperature, can realize 0-100% linear dimmer;
• The light body adopts outside frame design, the modeling is beautiful, installation very convenient, safe and reliable;
• The color temperature can be adjusted from warm white to cold white.

Technical Specifications

Light Sources

• LED: 480pcs 0.5W RGBW 4in1 EDISON led lamps
• Lifespan: 50000hours
• Color: RGBW 4in1 color mixing

Optics

• Beam angle: 170degree
• Dimmer: 0~100% linear dimmer

Light Output

• Iluminance: white: 2774lux@1m
• CRI: Ra≥90
• Color temperature: 1800K-10000K adjustable

Control

• DMX channel: 11CH
• Control mode: RDM; DMX-512, Demo mode, Manual; Dim-4 curves
• Control panel: LCD display + 4 buttons

Power Supply

• Related voltage: AC100V-240V, 50/60Hz, switching power supply
• Related power: 200W

Construction

• Body dimension: D542*W266*H125mm
• Net weight: 11.2kg
• Shell color: black
• Housing material: aluminum alloy

Working Environment

• Working temperature: -25-40℃
• Cooling: aluminum radiator and light body, no fan
• Protection rating: IP20

Spare Parts

• Cable: 1set DMX in and DMX out signal cable,  and 1set Power in and Power out power cable with plug [standard configuration]
• Light visor: 1pc light visor [optional configuration]

Package

• Carton board box package size: 650*430*260mm(1pc/carton)
• N.W/G.W/V.W: 9kg/11kg/15kg
