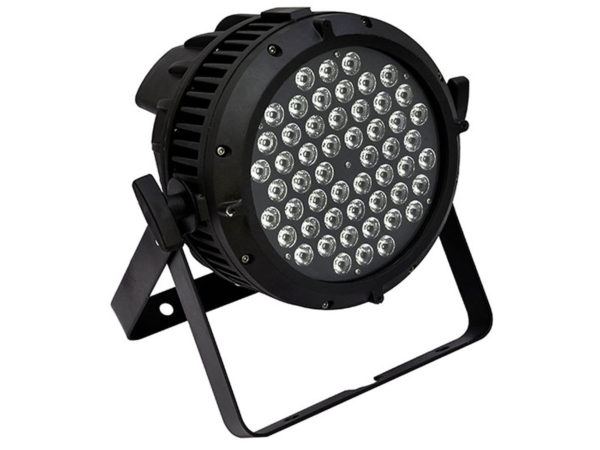

GL-PR324w-rgb-5440As/ln

Description

Combining energy-saving and environment-protective features of LED Lamps, using high efficiency constant current & new heat dissipation technology, 256 Grey Scale adjusted and create revise technology to make the dimmer to be more smoothly. Using multiple waterproof designs to meet the IP 67’s requirement. It is applying for the garden, big show, stage, theatre, outdoor building, indoor using and other places.

Features
· Control panel 4 digital LCD display show, with sign information for the power and signal;
· High efficiency constant current drive, 4096 level gray adjustment, no flash, mixed variety colors can reach to as many as 16 million;
· 5 levels color temperature adjustment function built-in, with a variety of strobe and auto-run effect, master/slave control mode acceptable;
· 8 DMX channels(STAG mode) or 3 DMX channels(HSV mode) optional;
· Uses high-quality genuine transparency acrylic lens as the second optical;
· With high efficiency thermal automatic protection function;
· Super brightness and extreme projection distance;
· Innovative gray adjustment technology to make the dimmer and color change more smoothly;
·ID address code automatic input function.

Specifications
·Input power: AC110~240V, 50/60Hz (Uses switching power supply)
·Power consumption: 165W
·Light sources: 54pcs 3W supper brightness LED Lamps, (LED Lamp layout:R:12; G:12; B:12; W:18, or R:12; G:14; B:14; W:14)
·DMX channels: 8CH(STAGE mode) or 3CH(HSV mode)
·LED Lifespan: 50,000hours
·Beam angle: 25degree(8degree/15degree/45degree optional)
·Effect: 0~100% dimmer, 0~20Hzstrobe
·Agreement: DMX-512
·Control mode: DMX-512 control mode, auto-run and master/slave control mode
·IP rating: IP67
·Working temperature: -25centigrade ~+35centigrade
·Housing material: die-casting aluminum
·Body size: 350*290*290mm 13.8 x 11.4 x 11.4in
·Carton box package size: 360*340*280mm (1pc/carton)
·N.W/G.W: 9kg/10kg
·Carton box package size: 715*390*610mm (4pcs/carton)
·N.W/G.W: 36kg/41kg
·Flight case package size: 1000*630*510mm (6pcs/carton)
·N.W/G.W: 54kg/69kg
