GL-CYC180w-dt-LB1578Bs/ln

Description

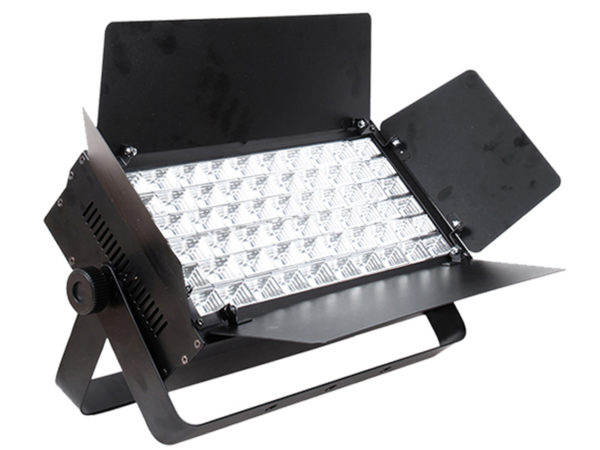

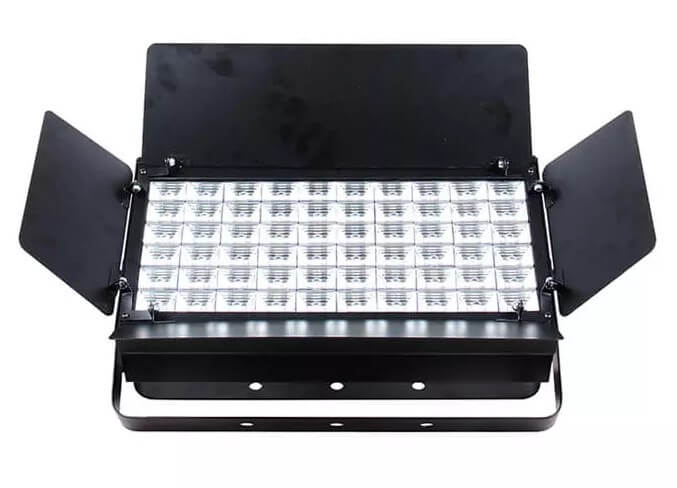

Power 180W/Beam Angle 60/120 degree/Color Temp RGB mixing, colorful / Dimension D382*W190*H77mm or 15 x 7.5 x 3in/ Cyclorama Light

This LED cyclorama light adopts plate material shell made with beautiful shape, high efficiency and energy saving, durability, it is suitable for indoor use. This product strictly according to CE standard design and production, complete with international standard DMX512 agreement, both single machine control, also can be controlled by connected with, suitable for large art performance, theatres, studio, discos and other places of use. It’s special designed for the stage curtain, wall wash and other using. It’s widely used for touring performance, construction, lighting, theater, discos, bars and other entertainment places.

Features

• 8CH DMX control channels, digital show control panel;
• DMX512, Sound active, auto-run and master/slave four kinds control mode;
• IP20 protect rating;
• With strobe stage effect;
• Long lifespan high brightness LEDs can reach to 50,000hours;
• High-efficiency, power-saving, low heat.

Technical Specifications

Light Sources

• LED: 60pcs 3W high brightness LED Lamps, (R:14; G:14; B:14; W:18)
• Lifespan: 50000h
• Color: RGB mixing, colorful

Optics

• Beam angle: 120*60degree
• Dimmer: 0-100% linear dimmer
• Strobe: 1-25 times/second

Light Output

• Optimal projection distance: 6-25m

Control

• Control mode: standard DMX-512; Master/slave; Demo
• DMX channel: 8CH
• Display of control panel: 4 buttons LCD display
• Special illustration: use aluminum profiles and aluminium plate to produce this light, it is lightweight, rugged, beautiful, professional, project evenly light.

Power Supply

• Related voltage: AC100V-240V, 50/60Hz
• Related power: 180W

Construction

• Body dimension: D382*W190*H77mm or 15 x 7.5 x 3in
• Net weight: 4.5kg
• Shell color: black
• Shell material: aluminium alloy

Working Environment

• Working temperature: -25-40
• Cooling: Fan
• Protection rating: IP20

Standard Configuration Spare Part List

• Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)
• User manual: English version user manual

Package

• Carton board box package size: 505*200*125mm (1pc/carton)
• N.W/G.W/V.W: 4.5kg/5.5kg
