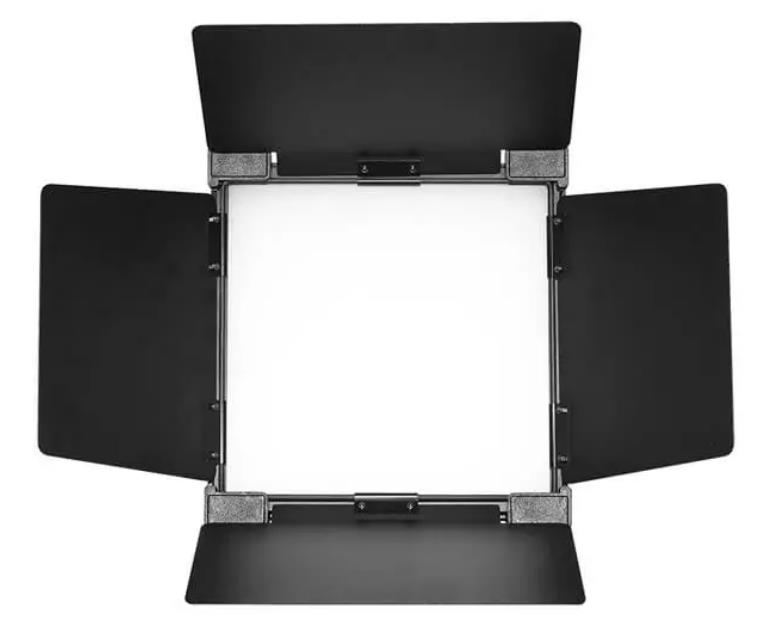

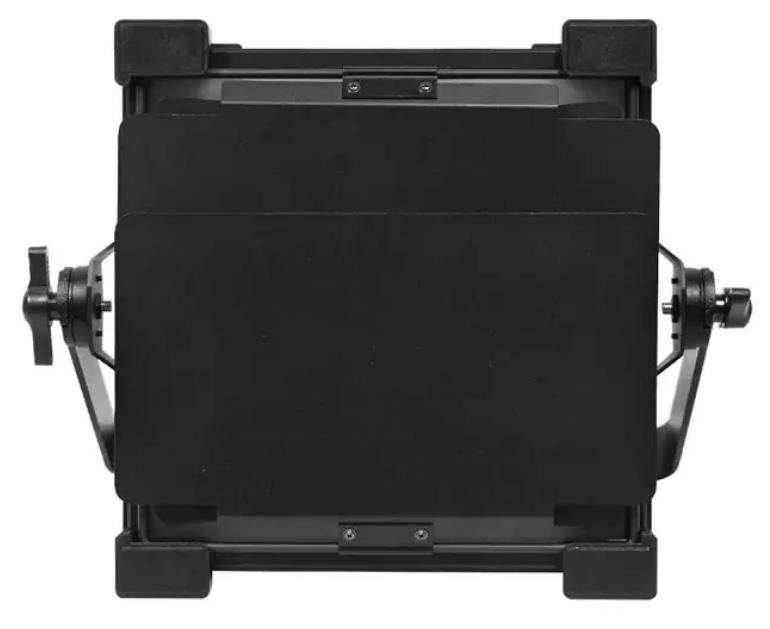

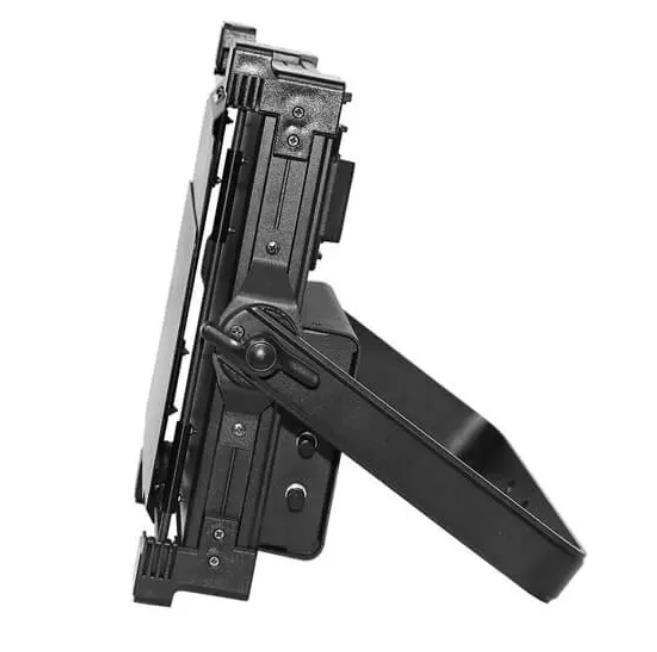

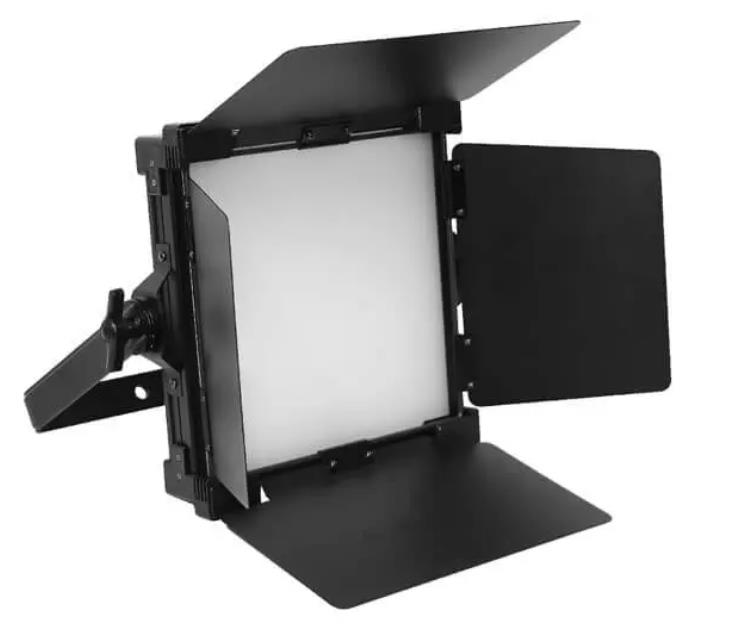

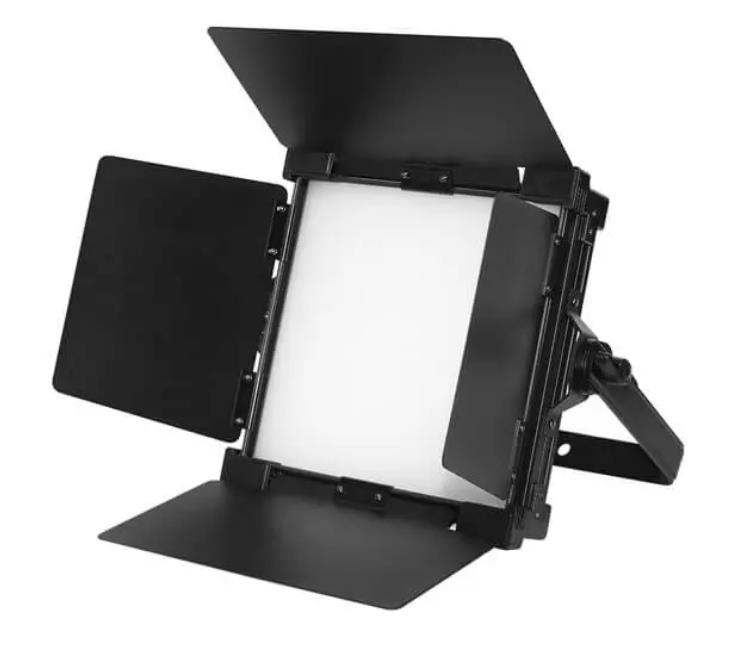

GL-PLsft70w-bi-ITC298c-s/ln

Description

·Based on the LED Film and Television Flat Light, using high brightness SMD LED chips beads matrix arrangement of large area, through the whole aluminum shell to realize heat dissipation naturally. This light has high brightness, good head dissipation, ultra-quiet and other features. It can satisfy the requirement of indoor and outdoor movie filming for the lighting layout. It is a good substitute of the traditional three basic colors light.

Features

·The light’s lighting function is controlled by DMX-512, very convenient;

·Using bead LED chips, pure color temperature, can realize 0-100% linear dimmer;

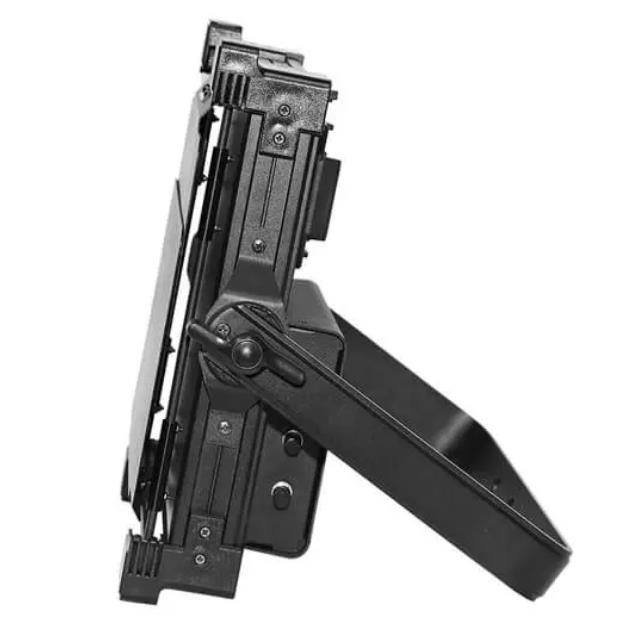

·The light body adopts outside frame design, the modeling is beautiful, installation very convenient, safe and reliable;

·The color temperature can be adjusted from warm white to cold white.

Technical Specifications

Light Sources

·LED: 288pcs 2835 cold white SMD and 288pcs 2835 warm white high CRI and high brightness LED bead chips

·Lifespan: 50,000hours

·Color: from warm white to cold white

Optics

·Beam angle: 120degree

·Dimmer: 0~100% linear dimmer

·CRI: Ra≥95, R9≥90,TLCI≥95

·Color temperature: 3200K-5600K adjustable

Light Output

·Light output power: 70-50W

Control

·DMX channel: 3CH

·Control mode: DMX-512, Demo mode, Manual

·Control panel: TFTLED display + 2 rotation buttons

Power Supply

·Input voltage: AC100V-240V, 50/60Hz, 2.0A, power adapter

·Output: 14V, 6A

·Standard V-port battery back clip: have

·Battery: optional(need purchase, not standard)

·Power consumption: 70W

Construction

·Body dimension: D276*W276*H80mm

·Net weight: 4kg

·Shell color: black

·Housing material: aluminum alloy

·Working Environment

·Working temperature: -25-40℃

·Cooling: aluminum radiator and light body

·Protection rating: IP20
