GL-PLsft100w-dt-ITC1360p/ln

Description

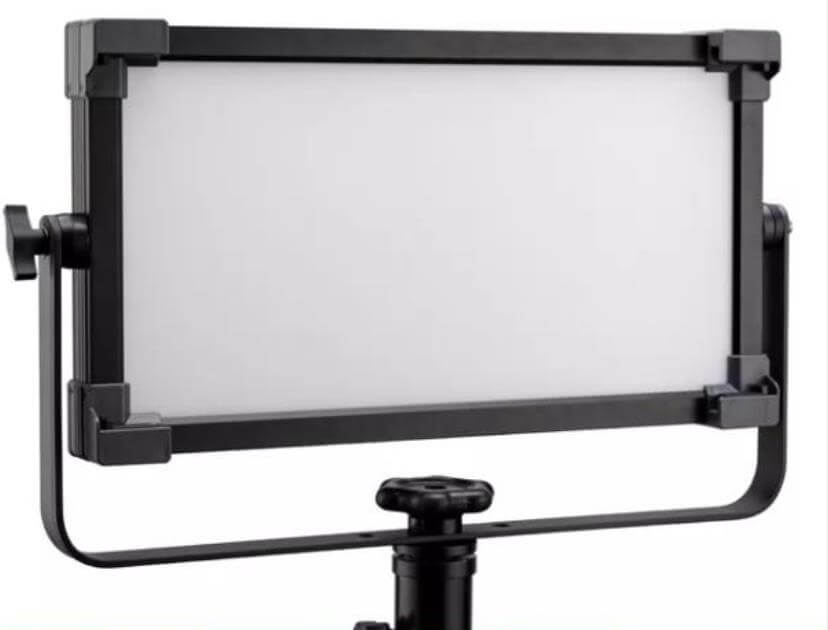

·The 100w mini light is equips warm white and cold white led lamps. It adopts advanced heat dissipation system design, natural heat dissipation and ultra-quiet, so that the product can meet strict requirements when shooting broadcast and television. It is very simple to operate, user-friendly design, dimming without flicker, smooth linear dimmer, stable performance, and temperature control detection protection function. The lamp is very suitable for large TV stations, studios, multi-function halls and other video places.

Features

·The lighting function of the light is controlled by DMX-512, which is very convenient;

·Using LED chips, pure color temperature, 0-100% dimming can be achieved;

·The lamp body adopts outer frame design, beautiful appearance, convenient installation, safe and reliable.

Technical Specifications

Light Sources

·LED: warm and cold white SMD led, total 100W

·Color: from warm white to cool white

·Service life: 50,000h

Light Optic

·Optic: High light transmittance diffusion plate

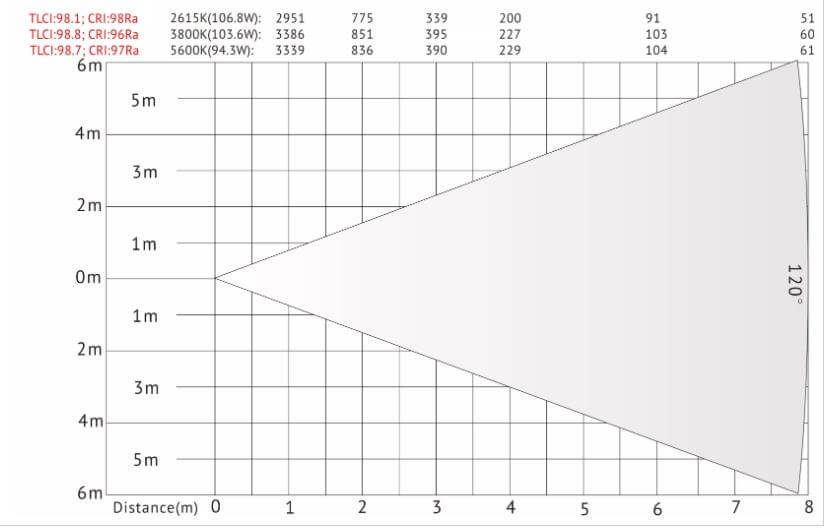

·Beam angle: 120degree

Light output

·Color temperature: 2700K-6500K adjustable

·Light output power: keep 100W

·Color rendering index: ≥97+ Ra

·TLCI: 98

Controls and procedures

·DMX channels: 5CH

·Control mode: DMX512

Electrical specifications

·Input voltage: AC100-240V, 50HZ-60HZ

·Power consumption: 120W

Structure specification

·Body dimension: 540*299*118 mm

·Net weight: 4.9kg

·Shell material: aluminum alloy

·Shape color: dark gray/blue

Use environment

·Protection level: IP20

·Environmental temperature: -25-40℃

·Cooling system: forced cooling fan/heat sink

List of standard accessories

·1 DMX signal line

·1 Power cord

Optional accessories list

·Safety rope: choose the model you need, extra charge is required

·Light hook: choose the model you need, extra charge is required

·Flight case: select the number you need to install, additional charges are required

Package

·Carton board box package size: 680*440*190mm (1pc/carton)

·N.W/G.W: 4.9kg/6.8kg
