GL-FR400w-rgbal-EL410gs/ln

Description

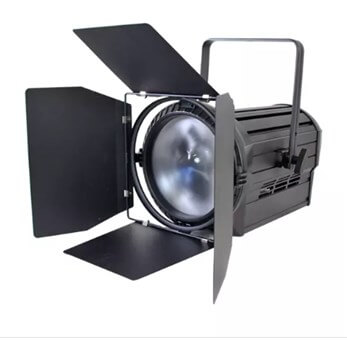

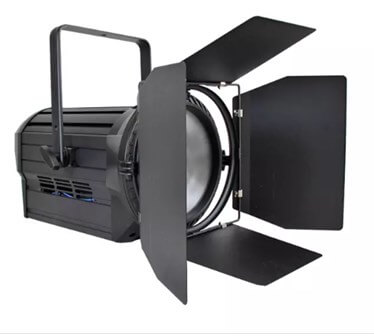

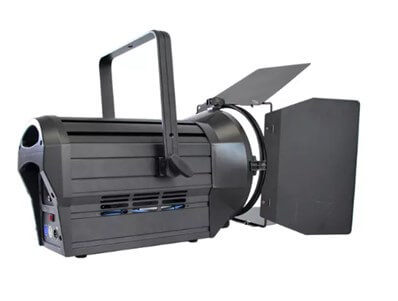

• This television projector light equips high power 400W 5in1 color LED lamps as the light source, it’s energy saving. This light without any fan and absolute quite. And it uses high efficiency optical lens, light soft. It’s a best choice for film and television performances, studio and other places.

Features

• The internal adopts full copper radiator large area, good heat dissipation, ensure the lifespan of the LED Lamps;
• Without fan, quite;
• Through efficient optical lenses, with special heat dissipation design, make the light is downy, small stray light, no glare, eyes more comfortable;
• Use the LED video projector scheme, the light energy saving 80%;
• Because of almost no infrared radiation, it has greatly improve work environment.

Technical Specifications

Light Sources

• LED: 1pc 400W RGBAL 5in1 colorful COB LED Lamps
• Lifespan: 500,000h
• Color: RGBAL color mixing

Optics

• Beam angle: 15-60degree
• Dimmer: 0-100% linear dimmer
• CRI of white: Ra>92
• Color temperature: 3200K-5600K

Light Output

• Every color output: 80W
• Total mixing color output: 200W (The fanless light need care about the radiating of light)
• Optimal projection distance: 3-6m

Control

• Control mode: DMX-512; Auto run
• DMX channel: 8CH

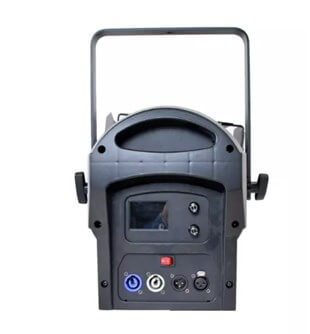

• Display of control panel: LCD display + 2 rotating knob

Power Supply

• Related voltage: AC100V-240V, 50/60Hz
• Related power: 400W

Construction

• Body dimension: D584*W352*H293mm
• Net weight: 12kg
• Shell color: black
• Shell material: aluminium die casting

Working Environment

• Working temperature: -25-40℃
• Cooling: copper tube convector fan
• Protection rating: IP20

Standard Configuration Spare Part List

• Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)
• Barn door: 1pc stand barn door
• Owners Manual owners manual for 410G
